Deploy and Configure a Global File System

This chapter is the end-to-end worked example. Once you understand the shared-OSV concept (Core Concepts: The Shared Object Storage Volume) and the architecture (Architecture), deployment is a matter of following these steps in order. The example builds a Global File System across three sites that use different vendors and capacities:

Site A — Anvil and DSX virtualized in VMware ESX with local NVMe and EMC Isilon.
Site B — Anvil and DSX virtualized in VMware ESX with local SSD and NetApp 7-mode.
Site C — Anvil and DSX in AWS, DSX using local EBS volumes.

Part 1: Install Anvil and DSX

Install Anvil and DSX at each site; this can run concurrently across sites and takes roughly 20–60 minutes per site. See Installing the metadata server (Anvil) and Installing data services (DSX) for details.

Part 2: Configure Local Storage

Each site needs local file storage — a DSX with local block storage or a local NAS export — to hold data used at that site. See Adding storage to Hammerspace for details.

Part 3: Set a User-Friendly Name for Each Site (Optional)

Each site has a cluster name set at install time. Setting a descriptive name makes multi-site management easier and lets you use the name in place of an IP address during replication setup.

Command:

local-site-config --name "SITE A"

Expected output:

ID:                            179ca903-af1e-4e37-9086-505fa83fdcf7
Name:                          SITE A
Internal ID:                   0
Site management address:       192.0.2.10
Site data address:             192.0.2.10
Effective management address:  192.0.2.10
Effective data address:        192.0.2.10
Trust client certificate:      true
Client certificate:
                         Version:      3
                         Serial:       <serial number>
                         Algorithm:    SHA512withRSA
                         Issuer:       O=Hammerspace, OU=SITE, CN=<site ID>
                         Subject:      O=Hammerspace, OU=SITE, CN=<site ID>
                         Validity:
                           Not Before: <timestamp>
                           Not After:  <timestamp>
                         Fingerprints:
                           SHA1:       <fingerprint>
                           MD5:        <fingerprint>
                           CRC32:      <fingerprint>

GFS participants:
                         [Share participant ID: <id>, ID: <uuid>]

The GFS participants list has one entry for each share on this site — every share carries its own local participant, whether or not it replicates anywhere — so it is empty only on a site that has no shares yet. It does not show which shares are part of a Global File System; use gfs-participant-list for that.

Repeat on Site B and Site C.

Part 4: Configure a Shared Bucket (Required)

Stop here and complete a full chapter before continuing

This part is a summary, not the procedure. The actual steps — adding a storage system, selecting or creating a bucket, and marking it shared — are a complete chapter of their own: Adding a shared bucket. Go there now, complete it for every site, and then come back to Part 5 below. Part 5 assumes the shared bucket is already configured on every site.

Any supported object-storage vendor/cloud can be the shared bucket; if none is available, Hammerspace S3 functionality can serve as the shared bucket. The bucket is used for cross-site data transfer (never metadata), must be reachable by all Anvil and DSX nodes at every site, and is added with the shared flag so other sites can join it.

Part 5: Create a Global Share

Create a new share (or use an existing one) and turn on share replication, which bi-directionally replicates all metadata changes to every participating site. The initial setup is done on the site holding the source share. The share must not already exist on a target site; GFS creates it there and immediately begins a near continuous stream of metadata.

Using the CLI

Run on Site A to create the share and add Site B and Site C as participants.

Command:

share-create --name Home --path /home

Expected output:

Name:                                Home
Internal ID:                         <id>
ID:                                  <uuid>
Path:                                /home
Lifecycle:                           CREATED
State:                               PUBLISHED
Size limit state:                    NORMAL
Export options:
                         [Client specification: *, Access permissions: RW, Root-squash: false, Insecure: false, Security options: [SYS]]
SMB-browsable:                       On
Is referral:                         No
Objectives:
                         [Name: delegate-on-open, ...]
                         (the share's default objective set — see xref:objectives-and-data-placement.adoc[])
Logical ID:                          <uuid>
Replication latency alert threshold: 300 seconds
Local GFS participant ID:            0
GFS participants:
                         Name:                                Home::SITE A
                         ID:                                  <uuid>
                         Admin state:                         Up
                         Oper state:                          Up
                         Participant share internal ID:       <id>
                         Participant site name:               SITE A
                         Participant site management address: <ip>
                         Participant site data address:       <ip>
                         Participant ID:                      0
                         Send Latency:                        Not Available
                         Receive Latency:                     Not Available
Client certificate:
                         (certificate detail, same shape as in local-site-config)
Private key CRC32:                   <checksum>

Send Latency and Receive Latency show Not Available here because this share has only its local participant so far — there is no remote site yet for latency to be measured against. Once a remote participant is added (see gfs-participant-add, next), these report real values the same way they do in the "Verifying and managing participants" section later in this chapter.

Command:

gfs-participant-add --share-name Home --site-name "SITE B" --site-username admin --site-password ********

Expected output:

Name:                                Home::SITE B
ID:                                  8365f58a-24a1-4ed1-9ae2-f9f4d4f75501
Local share name:                    Home
Admin state:                         Up
Oper state:                          Up
Participant share internal ID:       6
Participant site name:               SITE B
Participant site management address: 198.51.100.10
Participant site data address:       198.51.100.10
Participant ID:                      1
Replication interval:                5 seconds
Send Latency:                        0 seconds
Receive Latency:                     Not Available
Shared object storage volumes:
                         [Name: ObjectStorage::sharedbucket, Internal ID: 268435473, ID: 08d4bcee-577c-408a-9d27-637d17865e1b]
Internal ID:                         7
Local share internal ID:             6

If Part 3’s site naming was skipped for a given site, use that site’s actual cluster name (its auto-generated ID, e.g. AE15J7QCN01WL4) in place of "SITE B" — naming sites is optional, not required, for gfs-participant-add to work. Using an unrecognized site name fails clearly:

gfs-participant-add: site 'SITE B' not found.

Repeat gfs-participant-add for Site C.

Using the GUI

Navigate to Data › Shares and click Create Share. Name the share (Home in this example) — the NFS Export Path field auto-fills from the name (confirmed: typing Home immediately populates /Home). Click Create. The share is created on the local (source) site only.

The NFS Export Path auto-fill only works until the field is manually edited. If you type directly into NFS Export Path, the field does not cleanly revert to the derived value — it collapses to just /. Retyping the Name field afterward does not re-trigger auto-derivation for that dialog session. If this happens, either type the full correct path manually (e.g. /Home) or close and reopen the dialog.

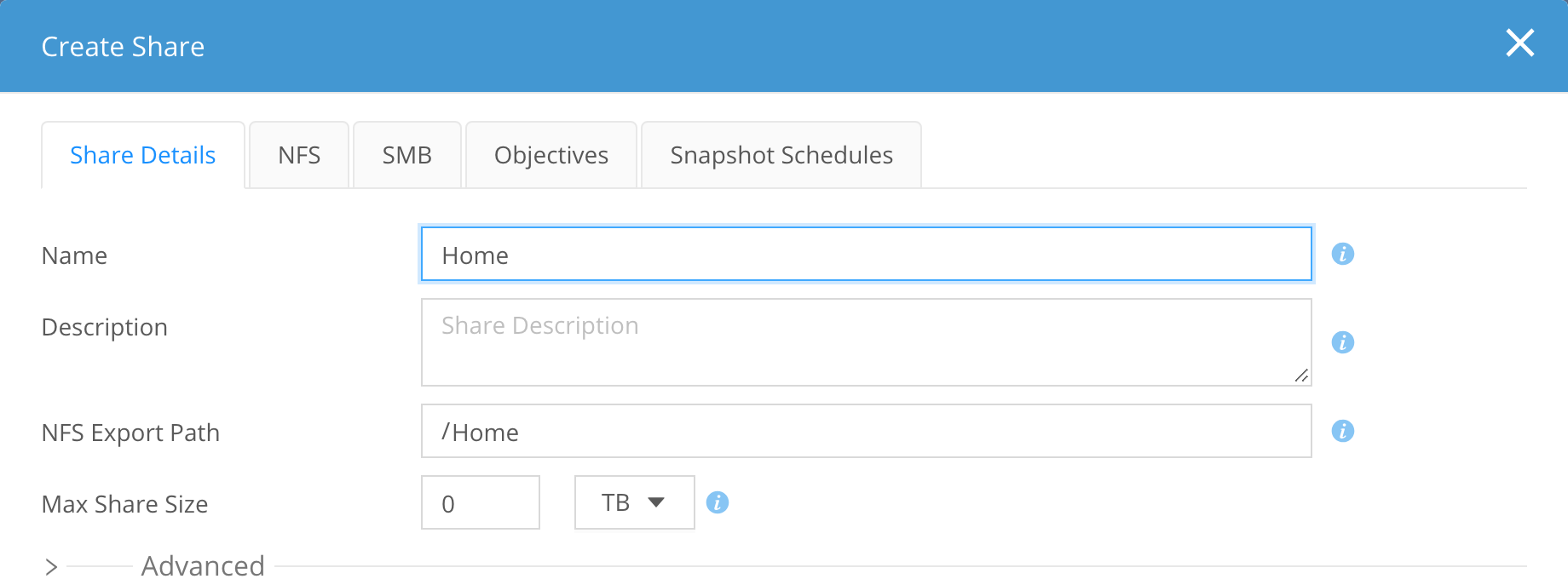

The Create Share dialog showing Name set to Home and NFS Export Path auto-filled to /Home

Figure 1. The Create Share dialog with the NFS Export Path auto-filled from the share name

Back on Data › Shares, click the Edit (pen) icon in the Home row to open the share-configuration dialog, then the Objectives tab. The File Conflict Resolution objective (log-xfer-1-<time>) is already selected by default — there is nothing to manually enable. It shows as inactive in the Active column only because its applicability condition (IS_GFS_SHARE) isn’t true yet; it activates automatically once the share has GFS participants.
Click the Global File System tab. It lists the share’s current participants — initially just the local site, shown Up. Click Add Participant.

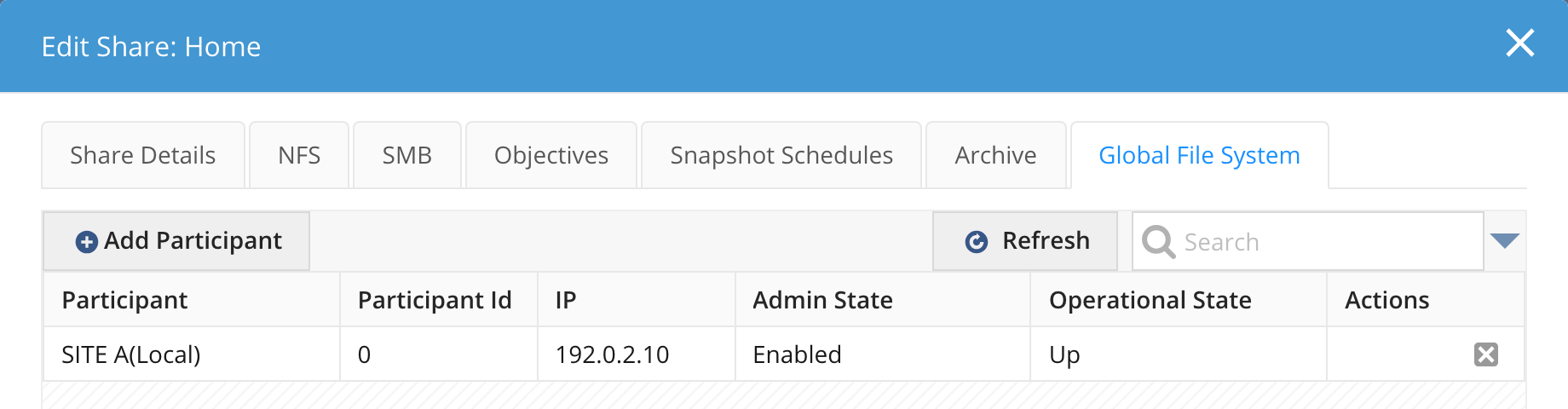

Figure 2. The Global File System tab before any remote participants are added
In Name, select the remote site (Site B). The pull-down is pre-populated with every site registered to the shared bucket: there is no separate "pair the clusters" step, because adding the shared OSV to both sites already registered them with each other. Selecting the site auto-fills its IP Address.

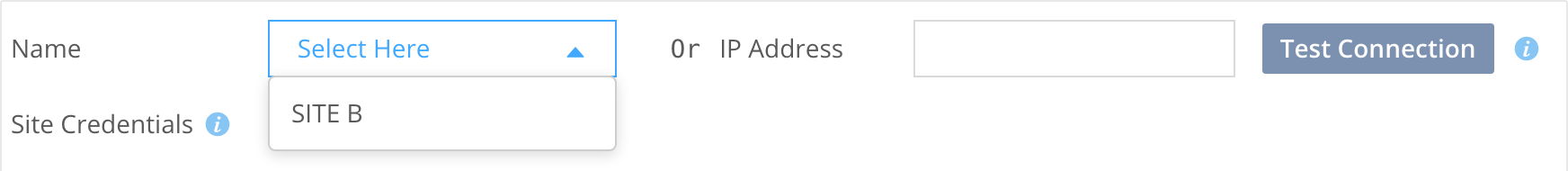

Figure 3. The Name pull-down pre-populated with the registered remote site

Under Site Credentials, enter the Username (admin) and Site B’s admin password, then click Test Connection to confirm reachability — a "The site is reachable" message confirms this. Leave Interval at the default (5 seconds) unless you need a different replication poll interval. Click Add.

What the replication interval controls

The Interval is how often each Anvil polls its participants for metadata changes to replicate — it does not set an upper bound on how current the two sites can be, only how frequently they check in with each other. A shorter interval means changes propagate faster but generates more inter-Anvil traffic; a longer interval reduces that traffic at the cost of more lag between a write and its replication. 5 seconds is the default and is appropriate for most deployments; there is no currently documented minimum or maximum — treat very short intervals (well under 5 seconds) as unverified for this guide.

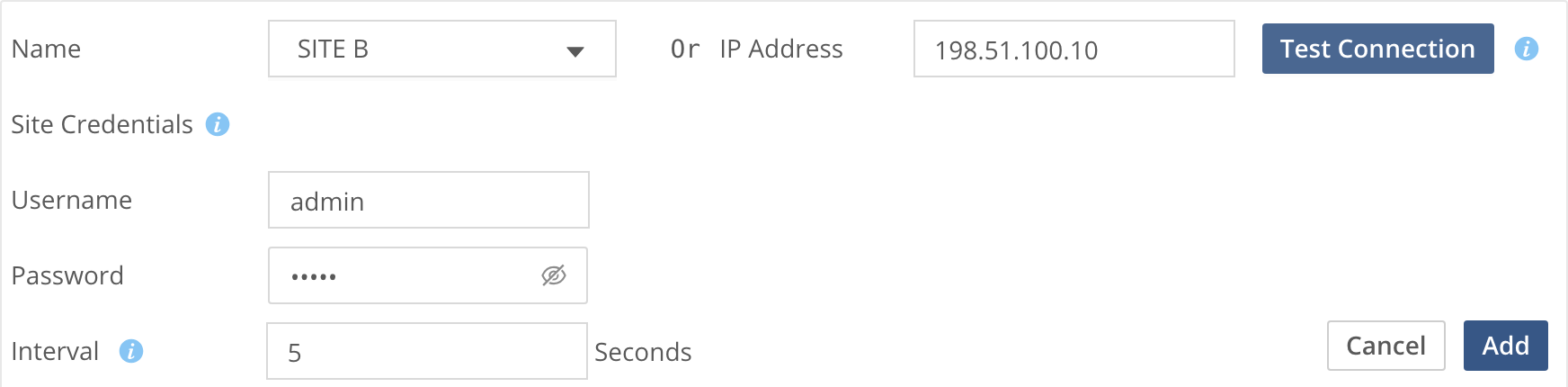

The Add Participant form with IP address

Figure 4. Site credentials filled in and connection confirmed

GFS creates the share on the remote site and starts metadata replication — confirmed live at roughly 13 seconds, within the 15–30 second range. The new participant appears on the Global File System tab with both Admin State and Operational State showing Up.

On this tab, Admin State displays as the word Enabled, not Up; only Operational State literally reads Up. Both indicate the same healthy state — see the terminology note in the next step.

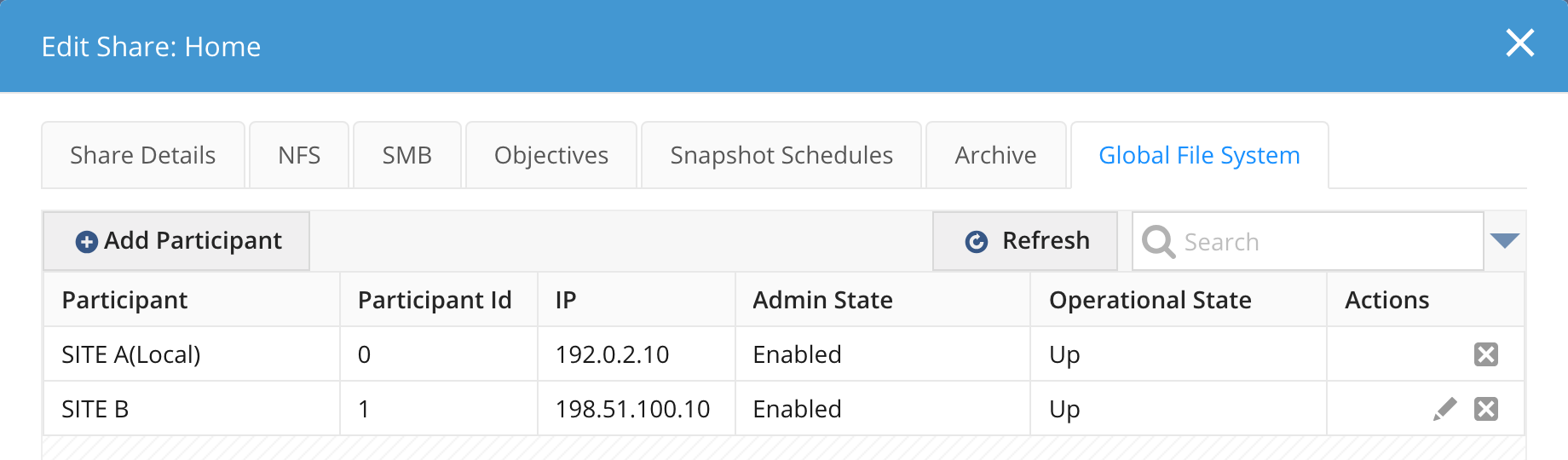

Figure 5. Both participants confirmed Up after adding Site B

Repeat for Site C.

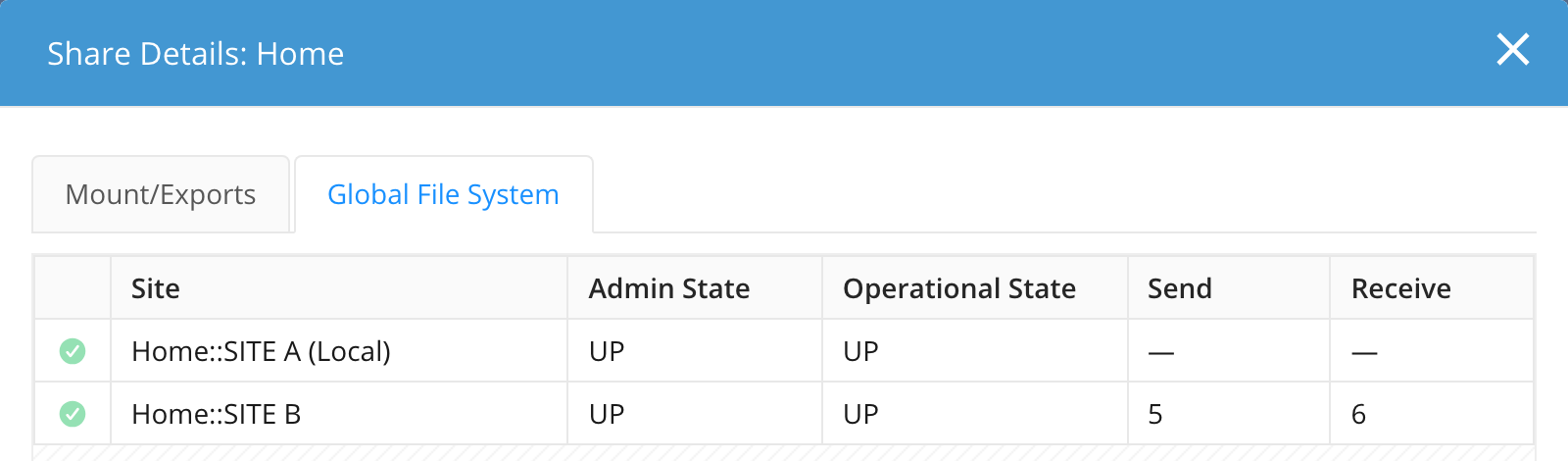

Verify replication on the Shares tab via the Details icon (the eye icon — not the Edit pen icon) and the Global File System tab, which shows each participant’s state along with Send and Receive latency.

This Details view’s Global File System tab is a different screen from the Edit dialog’s Global File System tab used in the previous steps, and uses different terminology for the same value: Admin State here reads UP, whereas the Edit dialog’s Admin State column read Enabled. Both refer to the same underlying state.

The Share Details Global File System tab listing both participants with Admin State and Operational State UP and a populated Send latency value for the remote participant

Figure 6. Verifying participant state and latency via the Details view

It is normal for latency figures to read 1.5x–3x higher than the raw network round-trip time (ping RTT) between the two sites — the replication-latency metric measures more than just network transit, so it will not match a plain ping result. A very large value on an existing share usually means the initial metadata sync is still in progress; shares are usable while replication catches up.

On an idle share with no data written yet, Send still populates with a numeric value — this appears to be a lightweight connectivity check between participants rather than a data-transfer measurement — while Receive continues to show — until data has actually been replicated. This differs from 5.2, where both Send and Receive show — until the share has real traffic. Confirmed live: a freshly-created, empty two-site share showed Send: 4, Receive: — for the remote participant immediately after joining, with no files written to the share.

Verifying and Managing Participants

The GUI’s Details view (previous step) is one way to check participant health. The CLI equivalent — and the more complete one — is gfs-participant-list, which is the canonical way to check a share’s replication health from a script or terminal:

Command:

gfs-participant-list --share-name Home

Expected output (one block per participant, including the local site):

total 2
Name:                                Home::SITE A
ID:                                  cf4899fd-088a-4409-b433-31957136ca71
Local share name:                    Home
Admin state:                         Up
Oper state:                          Up
Participant share internal ID:       6
Participant site name:               SITE A
Participant site management address: 192.0.2.10
Participant site data address:       192.0.2.10
Participant ID:                      0
Replication interval:                0 milliseconds
Send Latency:                        Not Available
Receive Latency:                     Not Available

Name:                                Home::SITE B
ID:                                  8365f58a-24a1-4ed1-9ae2-f9f4d4f75501
Local share name:                    Home
Admin state:                         Up
Oper state:                          Up
Participant share internal ID:       6
Participant site name:               SITE B
Participant site management address: 198.51.100.10
Participant site data address:       198.51.100.10
Participant ID:                      1
Replication interval:                5 seconds
Send Latency:                        4 seconds
Receive Latency:                     6 seconds
Shared object storage volumes:
                         [Name: ObjectStorage::sharedbucket, Internal ID: 268435473, ID: 08d4bcee-577c-408a-9d27-637d17865e1b]

A healthy participant shows Admin state and Oper state both Up. The local site’s own entry always shows a Replication interval of 0 milliseconds — it isn’t polling itself.

To temporarily pause replication to one participant without removing it — useful for planned maintenance on the remote site — use gfs-participant-disable, then gfs-participant-enable to resume:

gfs-participant-disable --share-name Home --site-name "SITE B"

Expected output:

Success with some errors:

Name:                                Home::SITE B
ID:                                  8365f58a-24a1-4ed1-9ae2-f9f4d4f75501
Local share name:                    Home
Admin state:                         Down
Oper state:                          Down
Participant share internal ID:       6
Participant site name:               SITE B
Participant site management address: 198.51.100.10
Participant site data address:       198.51.100.10
Participant ID:                      1
Replication interval:                5 seconds
Send Latency:                        2 seconds
Receive Latency:                     10 seconds
Shared object storage volumes:
                         [Name: ObjectStorage::sharedbucket, Internal ID: 268435473, ID: 08d4bcee-577c-408a-9d27-637d17865e1b]
Internal ID:                         7
Local share internal ID:             6

Both gfs-participant-disable and gfs-participant-enable print a Success with some errors: header before their normal output, even on a completely ordinary, expected-to-succeed run against a healthy participant. Confirmed live against both 5.3.1-1201 and 5.2.14-1251: the command fully succeeds, Admin state changes correctly, and no actual problem occurs either time — this wording is pre-existing CLI behavior on both versions, not a new or 5.3-specific issue.

This header is CLI boilerplate, not a real error indicator — confirmed in the CLI source (ShareParticipantAdminStateUpdateCommand, the shared base class behind gfs-participant-enable, gfs-participant-disable, share-participant-enable, and share-participant-disable): the command builds its response as "Success", then unconditionally appends " with some errors:" followed by whatever content the server’s response includes — without checking whether that content actually describes a problem. If Admin state/Oper state in the output that follows show the expected result, this header can be safely ignored.

This sets Admin state to Down for that participant while leaving the participant relationship itself intact — confirmed live: replication lag (Send/Receive latency) grows while disabled, since polling has stopped, and the participant remains listed in gfs-participant-list throughout. Oper state also reads Down for as long as the participant is disabled. Re-enable with:

gfs-participant-enable --share-name Home --site-name "SITE B"

Expected output:

Success with some errors:

Name:                                Home::SITE B
ID:                                  8365f58a-24a1-4ed1-9ae2-f9f4d4f75501
Local share name:                    Home
Admin state:                         Up
Oper state:                          Up
Participant share internal ID:       6
Participant site name:               SITE B
Participant site management address: 198.51.100.10
Participant site data address:       198.51.100.10
Participant ID:                      1
Replication interval:                5 seconds
Send Latency:                        5 seconds
Receive Latency:                     8 seconds
Shared object storage volumes:
                         [Name: ObjectStorage::sharedbucket, Internal ID: 268435473, ID: 08d4bcee-577c-408a-9d27-637d17865e1b]
Internal ID:                         7
Local share internal ID:             6

Admin state returns to Up and replication resumes; latency catches up over subsequent polling intervals rather than instantly. Both commands are reversible and non-destructive — unlike gfs-participant-remove, they do not affect data or unwind the replication relationship.
