Restrict SMB Access to a Share

Applies to: Hammerspace 5.3 and later.

By default a share’s access control list grants Everyone full control, much as a Windows share does, and SMB clients may reach the share from any client IP address to any DSX static or floating portal IP address. File and folder permissions still determine what a user can do with the contents.

Turning off the SMB Browseable setting hides the share, but does not stop a client that knows the path from reaching it.

To actually block SMB access, add an access control entry to the share ACL that denies authenticated users.

  • Members of the built-in Administrators group can still reach the share over SMB.

  • The share ACL limits access for every protocol, not just SMB. Unix users can be represented through the NFSv4 special principals owner@, group@, and everyone@, and through Windows named principals where RFC 2307 attributes are populated.

  • The deny entry may appear to be less than full control, but it does block SMB access for non-administrators.

Edit the Share ACL from Microsoft Management Console

To use the Shared Folders snap-in, you must be a member of the built-in Administrators group, and the cluster must be running 5.0.20-588 or later, or 5.1.18-262 or later. If it is not, use the icacls method instead.

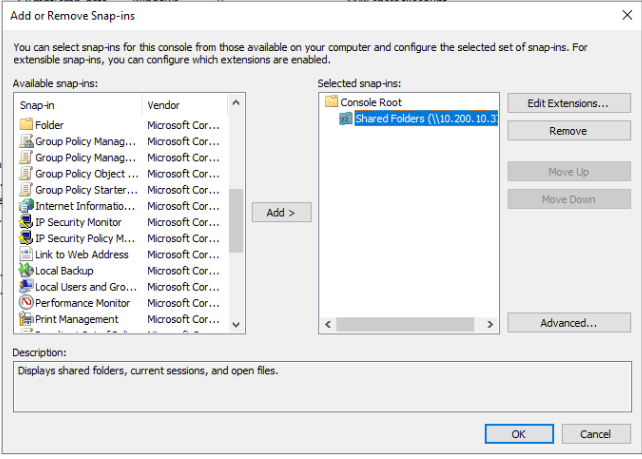

  1. Open Microsoft Management Console and choose File  Add or Remove Snap-ins.

    kb restrict smb access to a share image1
    Figure 1. Adding a snap-in

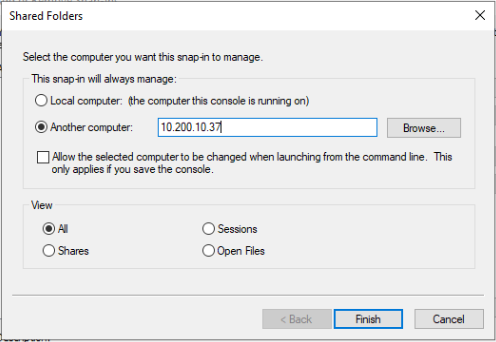

  2. Add Shared Folders, select Another Computer, enter a DSX floating IP address or hostname, and click Finish.

    kb restrict smb access to a share image2
    Figure 2. Pointing the snap-in at a DSX floating IP address

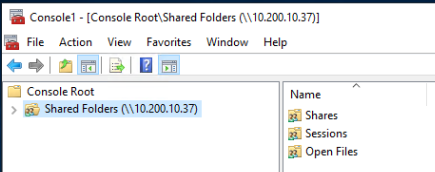

  3. Double-click Shares.

    kb restrict smb access to a share image3
    Figure 3. The Shares node

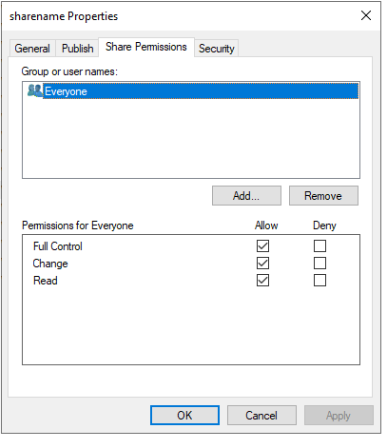

  4. Right-click the share and open the Share Permissions tab.

    kb restrict smb access to a share image4
    Figure 4. The Share Permissions tab

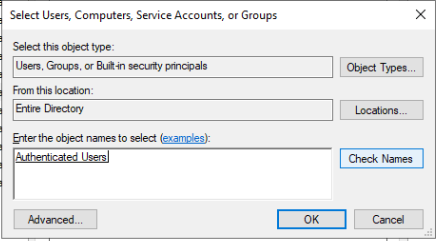

  5. Click Add, set the location to Entire Directory, add Authenticated Users, click Check Names, and click OK.

    kb restrict smb access to a share image5
    Figure 5. Adding Authenticated Users

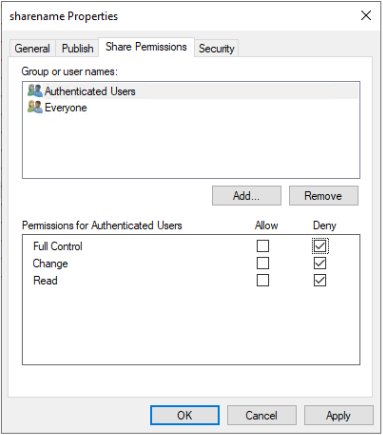

  6. Select Deny for Full Control against Authenticated Users.

    kb restrict smb access to a share image6
    Figure 6. Denying full control to Authenticated Users

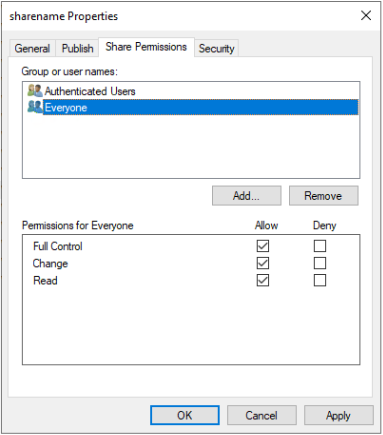

  7. Give Everyone the permissions the share needs — full control, in this example.

    kb restrict smb access to a share image7
    Figure 7. Setting the permissions for Everyone

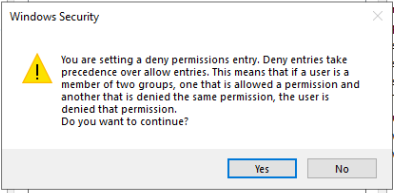

  8. Click Apply and confirm with Yes.

    kb restrict smb access to a share image8
    Figure 8. Confirming the change

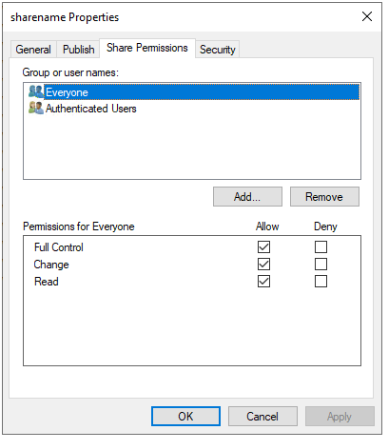

The current Microsoft plug-in does not display the deny entry correctly. Verify it separately, as described below.
kb restrict smb access to a share image9
Figure 9. The permissions as the snap-in displays them

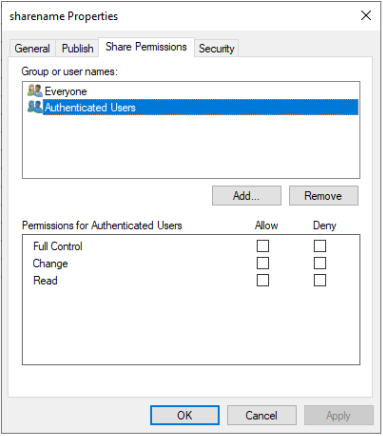

kb restrict smb access to a share image10
Figure 10. The share after the change

Display the real ACL from a Windows host using the UNC path to the share’s .share_attributes file:

kb restrict smb access to a share image11
Figure 11. The true ACL shown by icacls

Authenticated SMB users who are not administrators now see a permission denied error.

kb restrict smb access to a share image12
Figure 12. The error a restricted client sees

Edit the Share ACL with icacls

To use icacls, you must be a member of the built-in Administrators group, directly or through a group.

Show the current share ACL:

Command:

icacls \\<dsx-ip-address>\<share>\.share_attributes

Deny authenticated users, using the well-known security identifier S-1-5-11:

Command:

icacls \\<dsx-ip-address>\<share>\.share_attributes /deny *S-1-5-11:F

Show the result:

\\<dsx-ip-address>\<share>\.share_attributes
NT AUTHORITY\Authenticated Users: (DENY) (Rc, WDAC, S, RD, WD, AD, X, RA, WA)
Everyone: (F)
Successfully processed 1 files; Failed processing 0 files

Authenticated SMB users who are not administrators now see a permission denied error.

kb restrict smb access to a share image12
Figure 13. The error a restricted client sees
