Shares Are Inaccessible After Upgrading Domain Controllers to Windows Server 2022
Applies to: Hammerspace 5.2 and later.
Symptom
After Active Directory domain controllers are upgraded to Windows Server 2022, clients can no longer reach shares using an alias DNS entry or an IP address.
In the example used here, the cluster’s Active Directory computer object is jv-hs-a.asgard.local, and clients reach the cluster either through a DNS alias of file.asgard.local or through the IP address 192.168.10.10.
Cause
Windows Server 2022 changed how NTLM authentication is handled, and Microsoft has announced plans to deprecate NTLM entirely.
Those changes break authentication when a client connection falls back from Kerberos to NTLM — which happens when the computer object has no HOST service principal name matching the DNS name or IP address the client used.

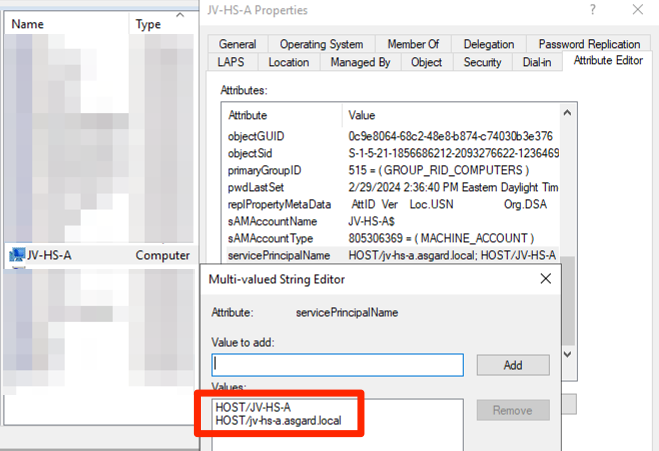

Joining the cluster to the domain creates two HOST service principal names automatically, both based on the computer object name: one for the single-label hostname, one for the fully qualified domain name.
A client reaching the cluster by any other name — a different DNS record, or an IP address — fails Kerberos and falls back to NTLM. Before Windows Server 2022 that fallback succeeded. Now it is rejected.
Resolution

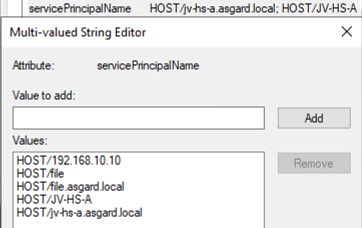

Create HOST service principal names for every name and IP address clients use to reach the cluster, including both the single-label and fully qualified DNS entries. Kerberos can then be used throughout, and nothing falls back to NTLM.
|
